Connecting Validata Cloud on Google Cloud Platform to self-managed data services

This topic explains how to enable private (non-public) connectivity from Validata Cloud to databases you manage in AWS, Azure, on-premises data centers, or Oracle Cloud Infrastructure (OCI) by leveraging Google Cloud Private Service Connect (PSC) through your own GCP project.

Supported environments

  • AWS

  • Azure

  • Oracle Cloud Infrastructure (OCI)

  • On-premises data centers

Architecture patterns

In this pattern, your GCP project exposes a PSC service attachment fronted by a Google Cloud Network Load Balancer. The load balancer targets one or more VMs with IP forwarding that route traffic privately (for example, via a site-to-site VPN/Interconnect) to the destination database or service. Validata Cloud (consumer) connects to the service attachment using a PSC endpoint, so all traffic remains on private links.

Private Service Connect for on-premises databases

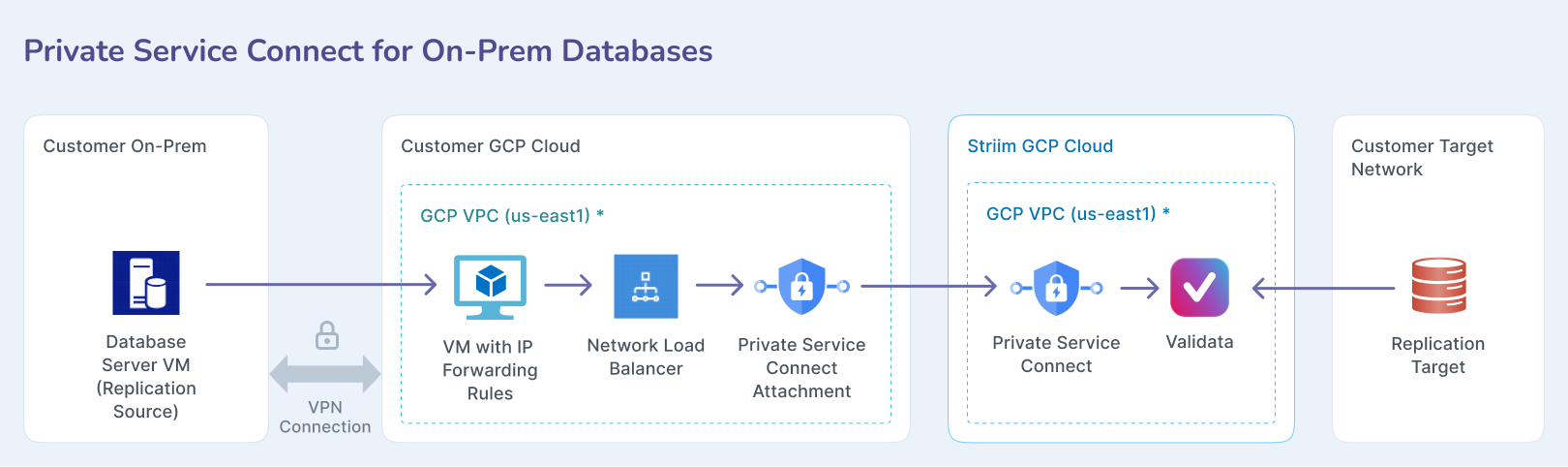

The architecture includes three network environments:

  • Validata GCP VPC: Contains the Validata server with Private Service Connect.

  • Customer GCP VPC: Contains Private Service Connect attachment, Network Load Balancer, and VM with IP forwarding rules.

  • Customer on-premises: Contains database server VMs connected via VPN connection.


Prerequisites

  1. A VPC network with one additional subnet for PSC.

  2. IAM rule for the user with above services creation permission.

  3. A VPN, Express Route, Direct Connect, or similar connection between customer GCP and on-premises or cross-cloud network.

Prepare customer VPN with on-premises network

Follow the link to set up a VPN connection between:

Step-by-step process to set up the network pipeline in customer project

This process sets up the necessary infrastructure in your GCP project to route traffic privately from Validata Cloud to your databases. You will create a proxy VM, configure load balancing, and establish the Private Service Connect attachment.

  1. Create an Ubuntu VM instance as follows:

    • An e2-medium should be sufficient for this solution.

    • Launch the instance in the same VPC network as the database.

    • SSH to the instance and set up an IP forwarding rule to forward all incoming traffic to the database by using the commands below (change the IP and port accordingly for your target database).

      • Determine if forwarding is currently enabled or disabled. The command below outputs the value of the given parameter. A value of 1 indicates that the setting is enabled, while 0 indicates it is disabled.

        sudo sysctl net.ipv4.ip_forward

      • Open the file /etc/sysctl.conf using your preferred command-line editor, such as vi.

        sudo vi /etc/sysctl.conf

      • Find the line corresponding with the type of forwarding you wish to enable, uncomment it, and set the value to 1. Alternatively, you can add the lines anywhere in the file.

      • After the changes have been saved, apply the changes by running the following command or by rebooting the machine.

        sudo sysctl -p

      • Review the existing iptables rules. If you are on a fresh installation of Linux and do not have any preconfigured rules, the output of the command below should be empty.

        sudo iptables-save

      • Configure iptables to allow port forwarding. This is the default setting for many systems.

        sudo iptables -A FORWARD -j ACCEPT

      • Run the following commands to set up the forwarding rule in the iptable.

        sudo iptables -t nat -A PREROUTING -p tcp --dport 5432 -j DNAT --to-destination
sudo iptables -t nat -A POSTROUTING -j MASQUERADE
sudo cat /proc/sys/net/ipv4/ip_forward
sudo sh -c "echo 1 > /proc/sys/net/ipv4/ip_forward"
sudo iptables-save

      • (Optional) You can add more than one forwarding rule to the same iptable by using a unique port for each target database IP.

      • To make this rule persistent during reboot, download the iptables-persistent package (press yes in the popup window to acknowledge).

        sudo apt install iptables-persistent

      • To review the iptables rule:

        iptables -t nat -nvL

  2. Go to the Compute Engine portal and select Instance groups on the left panel.

  3. Select Create instance group.

  4. Choose New unmanaged instance group.

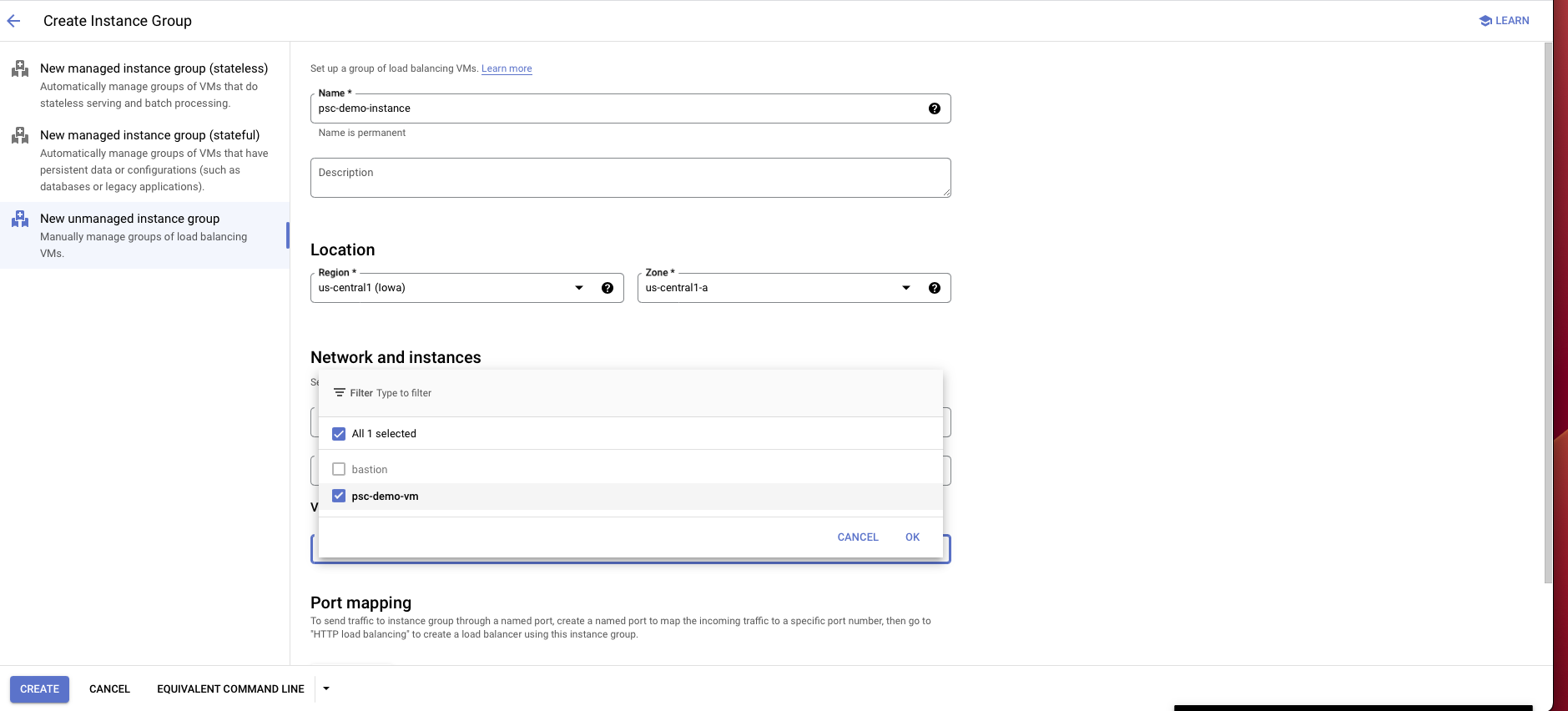

  5. Enter an instance group name, location, zone, and other information:

    • For location and zone, choose the same location and zone as the proxy instance that you created.

    • For network interface, choose the same VPC, subnet, and instance VM that you created or used earlier for the proxy instance.

    • Choose Create.

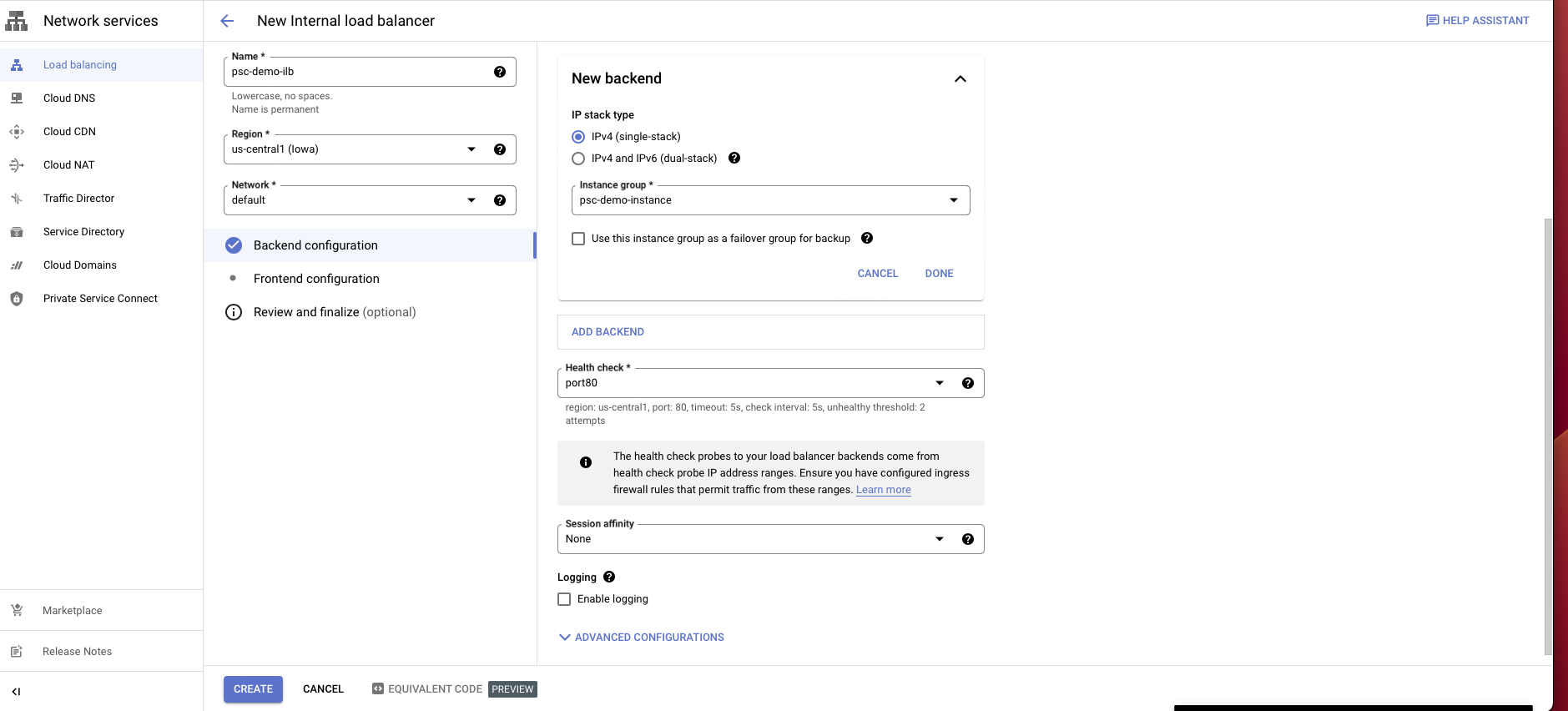

  6. Create a load balancer as follows:

    • Choose TCP load balancer.

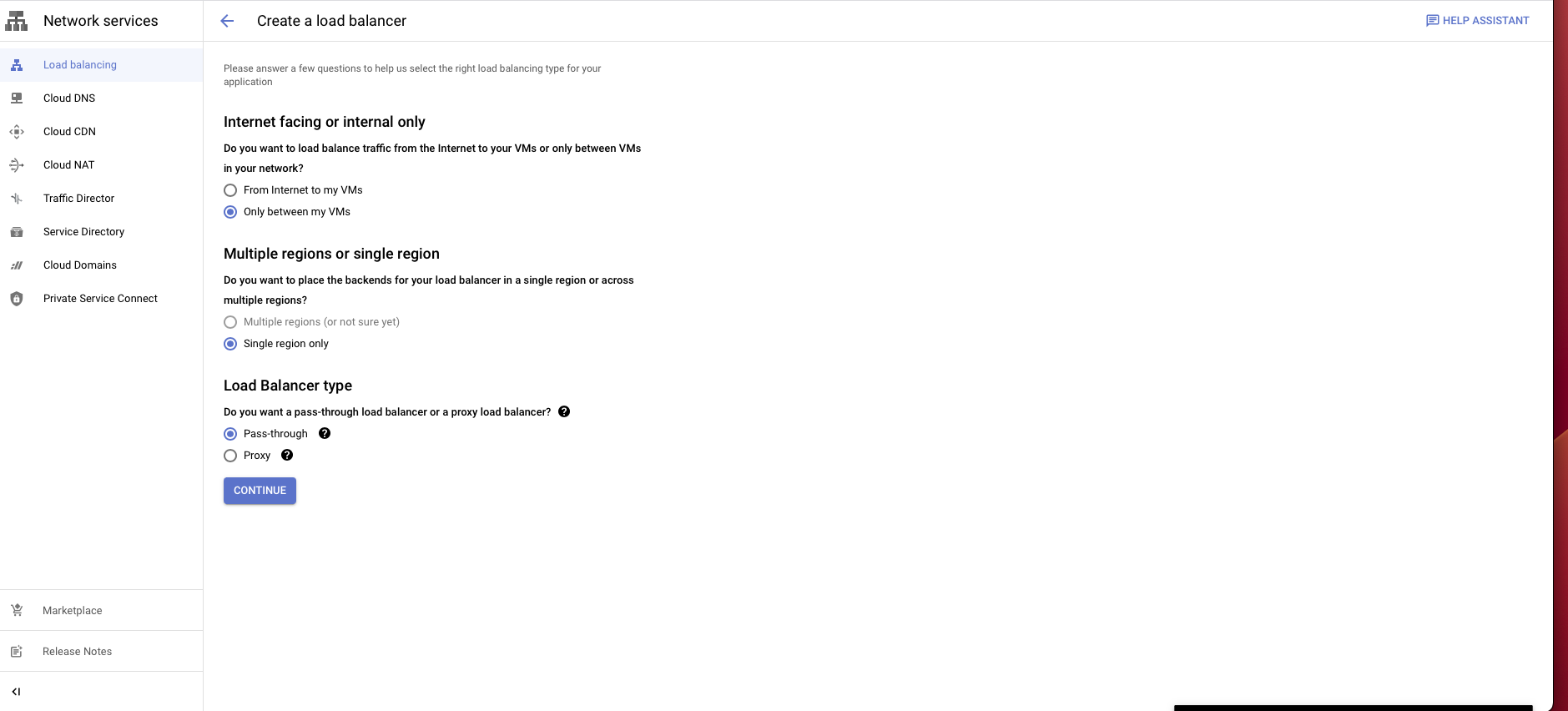

    • Select Only between my VMs, Single region only, Pass-through, then choose Continue.


    • Give it a name and choose the same region and network as the proxy VM instance.

    • In the backend configuration, choose the instance group you created.


    • Create a health check probe for the port you assigned for your database.

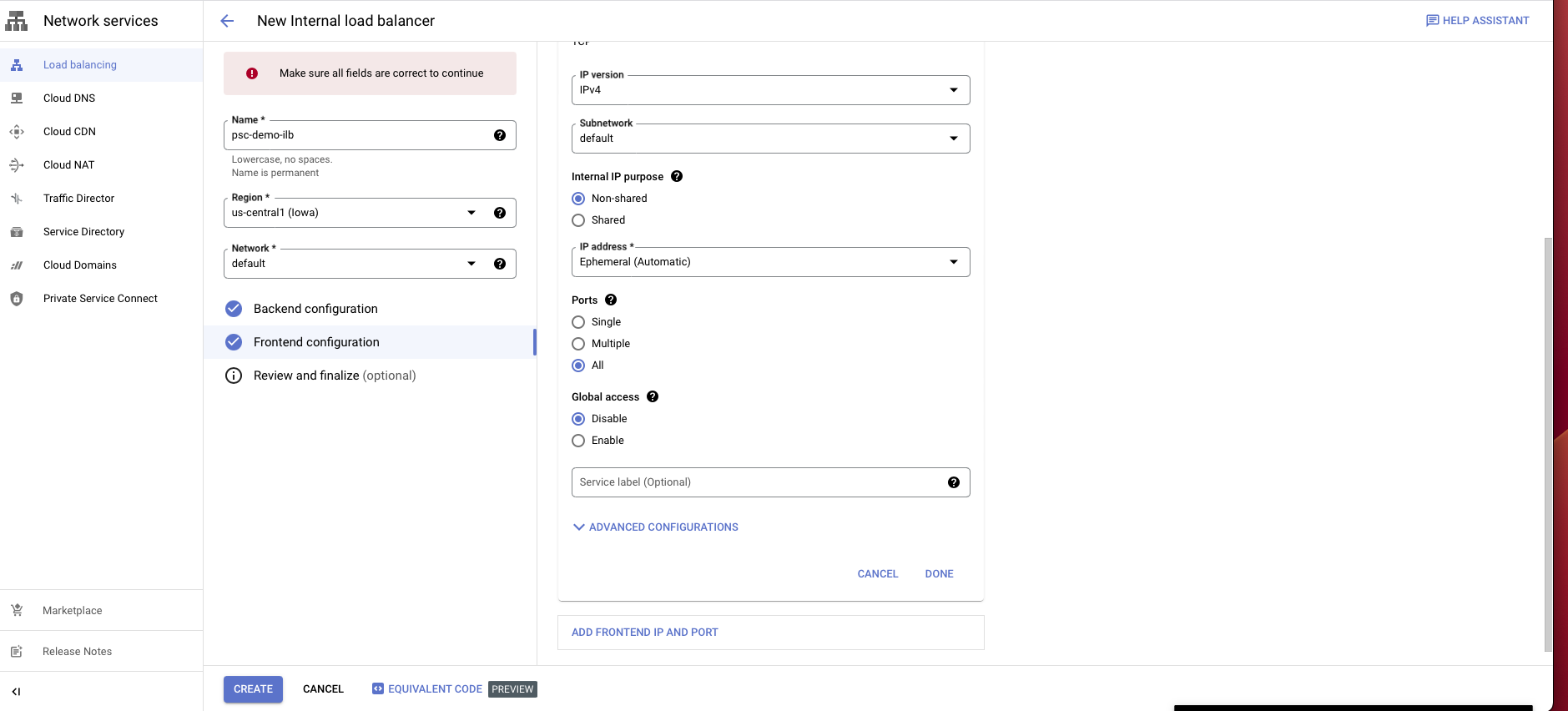

    • Select Frontend configuration.

    • Enter a name for the configuration.

    • Select the same network you have been using.

    • Choose an internal IP purpose, shared or non-shared.

    • For ports, choose all or any specific port(s).

    • Disable global access.

    • Choose Create.


  7. Go to the Load balancer portal.

  8. Select Private service connect on the left panel.

    • Select Published service, then choose Create new.

    • In the configuration, choose the load balancer type that you created before and select the load balancer from the dropdown.

    • Give it a name.

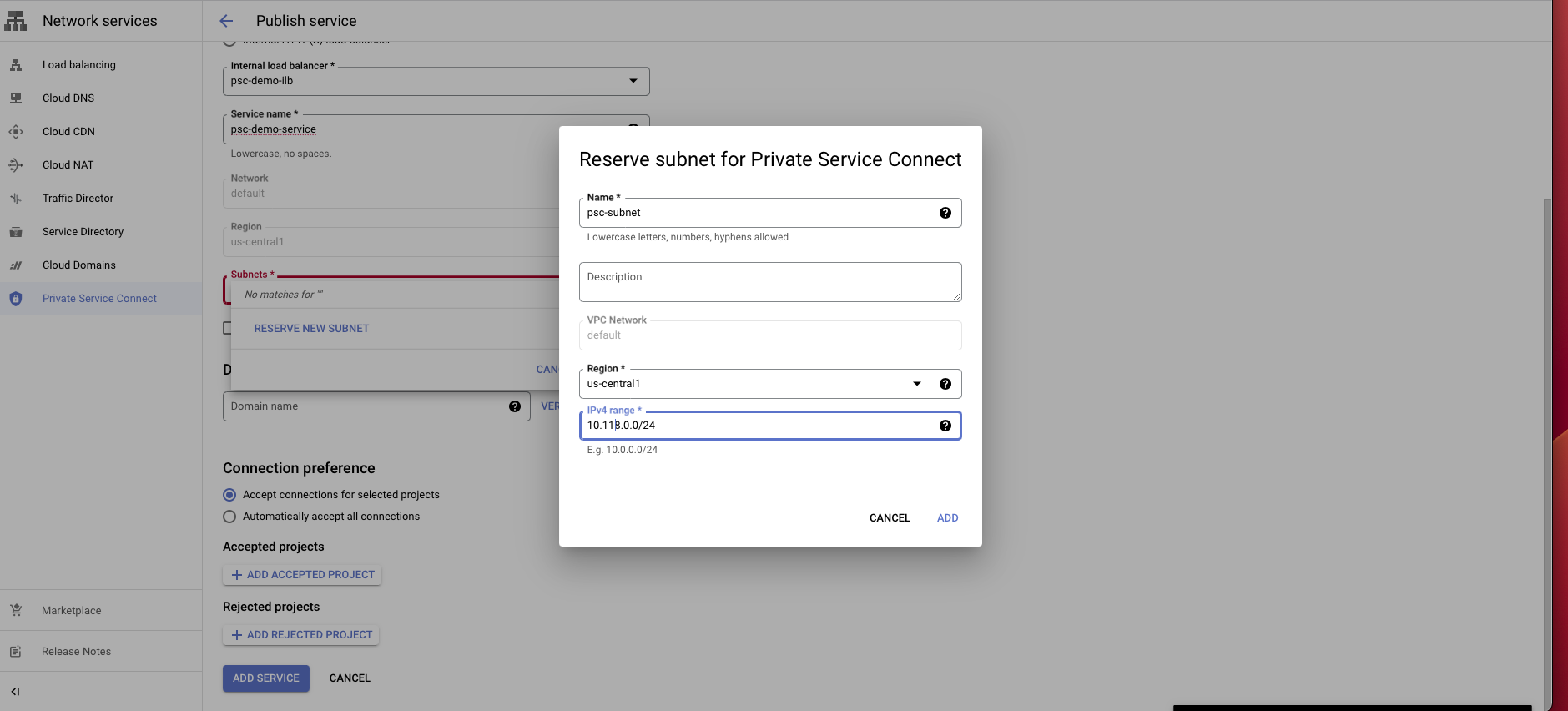

    • In the subnet section, choose Reserve a subnet for PSC.

    • Enter a subnet name and a CIDR block with /24.


    • Choose connection preference Accept connections for selected projects.

    • Select Add service to create this service.

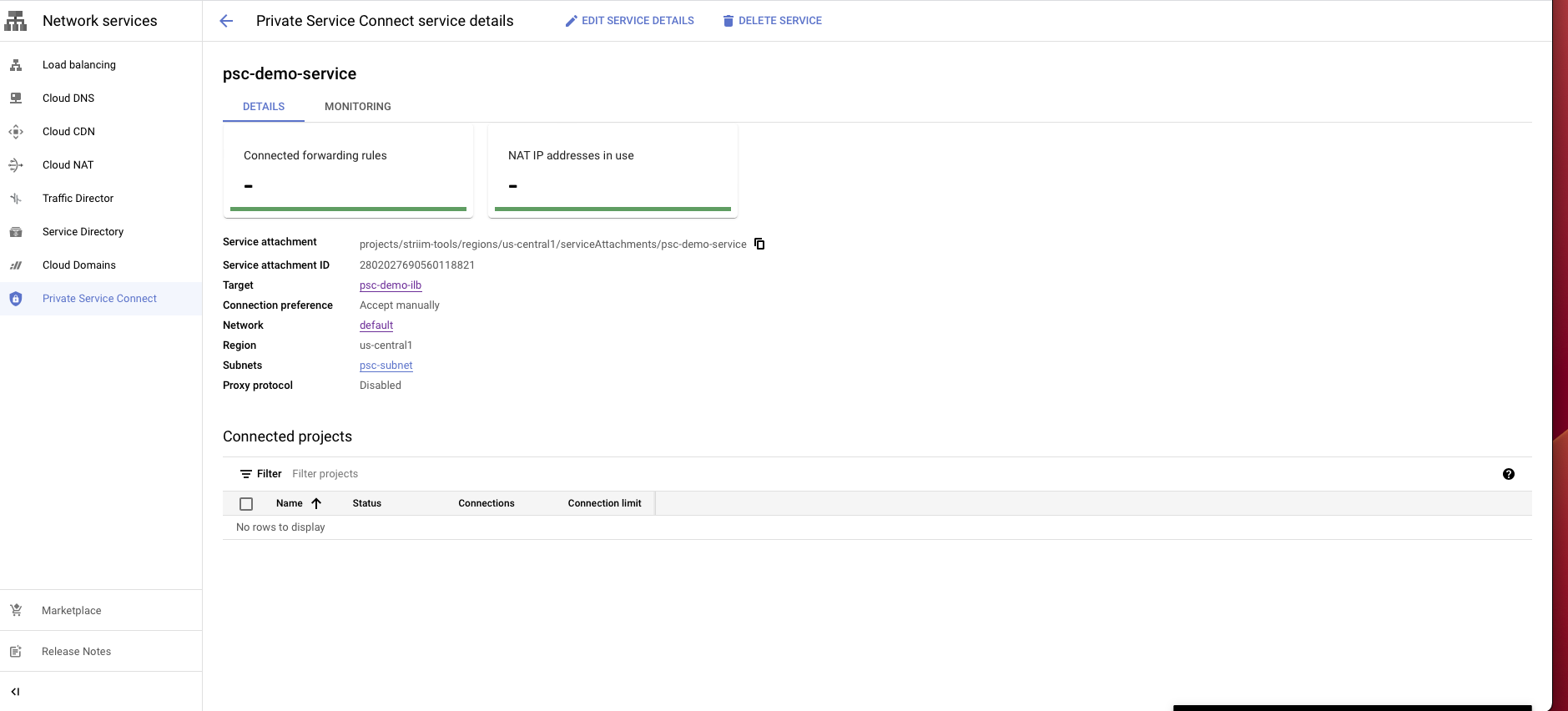

  9. After creating the service, select the service and copy the Service attachment. You will need this attachment to create a PSC connection in the Validata Cloud console.


Create a Private Service Connection in the Validata Cloud project

This process creates the corresponding PSC endpoint in Validata Cloud to connect to the service attachment you created in your GCP project.

  1. Log in to the Validata Cloud console.

  2. Select the service that you want to create a Private Service Connect from.

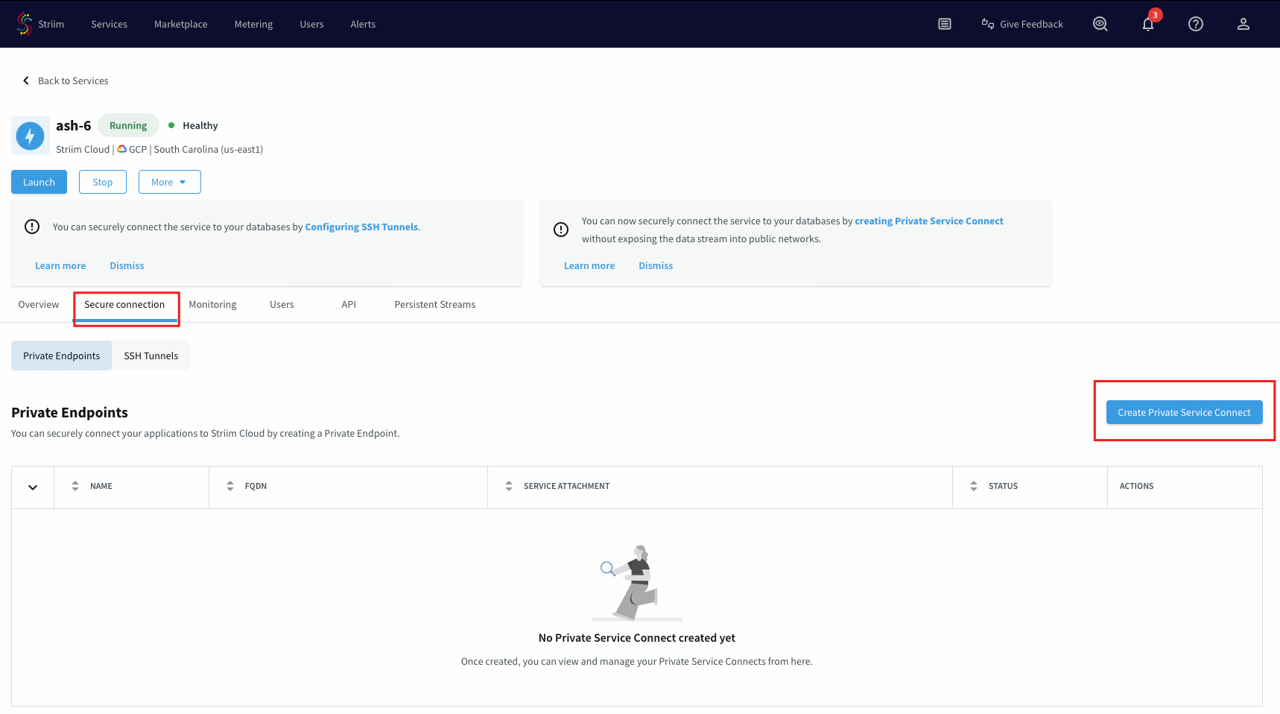

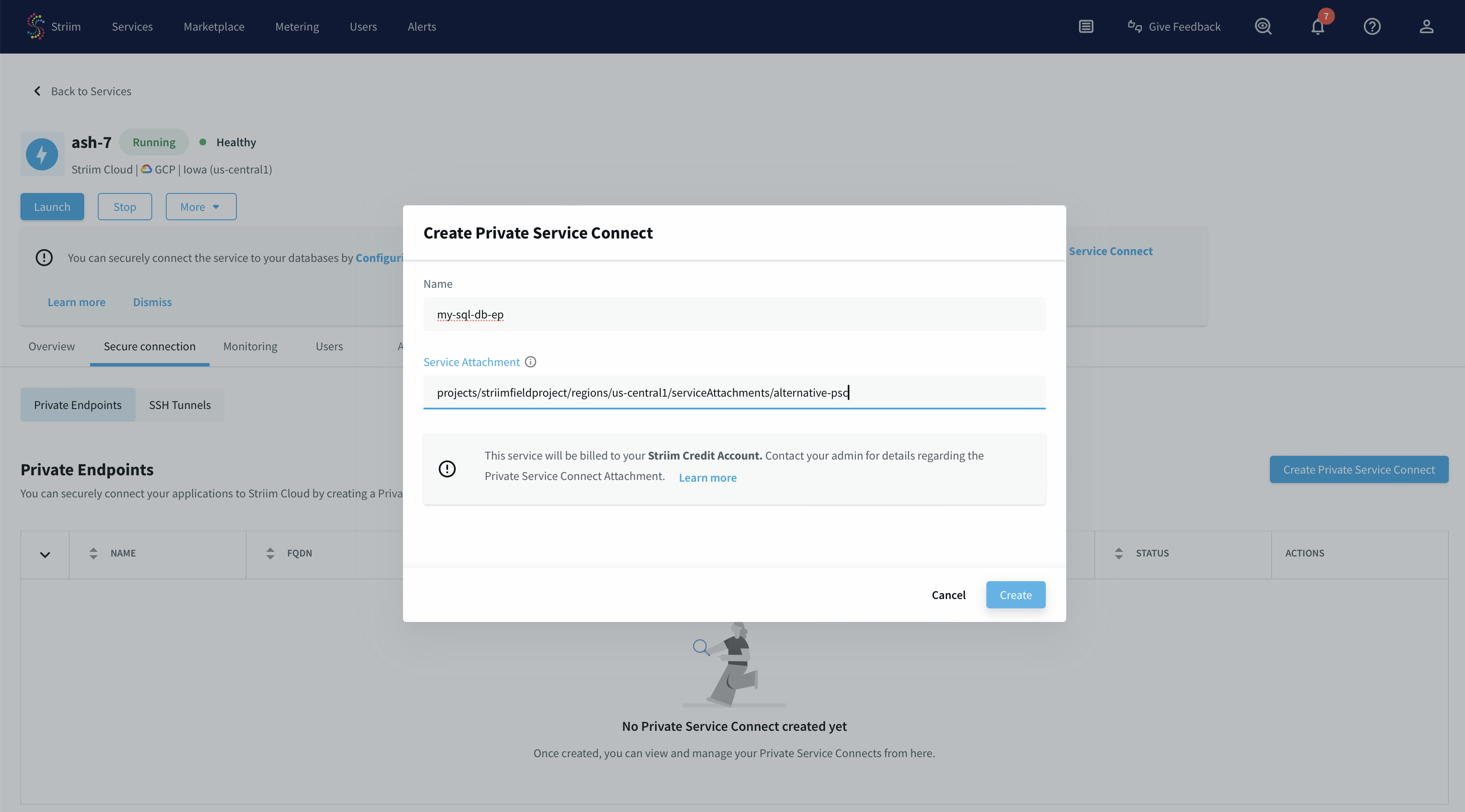

  3. Under the Secure connection tab, select Create Private Service Connect.


  4. Use a unique name for this connection.

  5. Paste the private service attachment URL that you copied previously and select Create. The attachment looks like:

    projects/striim-tools/regions/us-central1/serviceAttachments/psc-demo-service

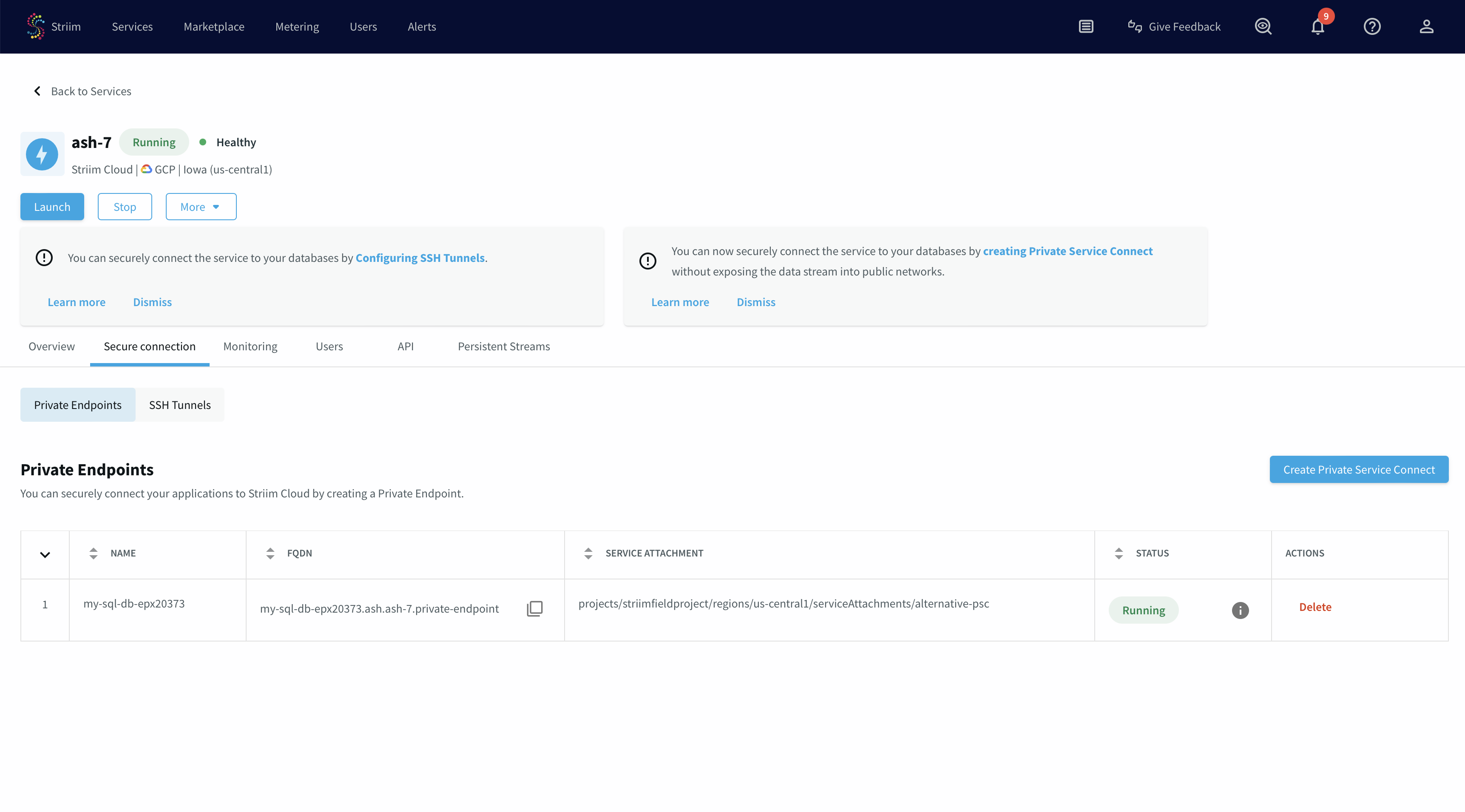

  6. You have created a PSC connection endpoint. It is in a pending state until the request is accepted.

  7. Once the request is approved from the PSC published service portal, the endpoint status changes to "Running".


Accept the PLS connection request in the customer project

The final step is to approve the connection request from your GCP project to complete the Private Service Connect setup.

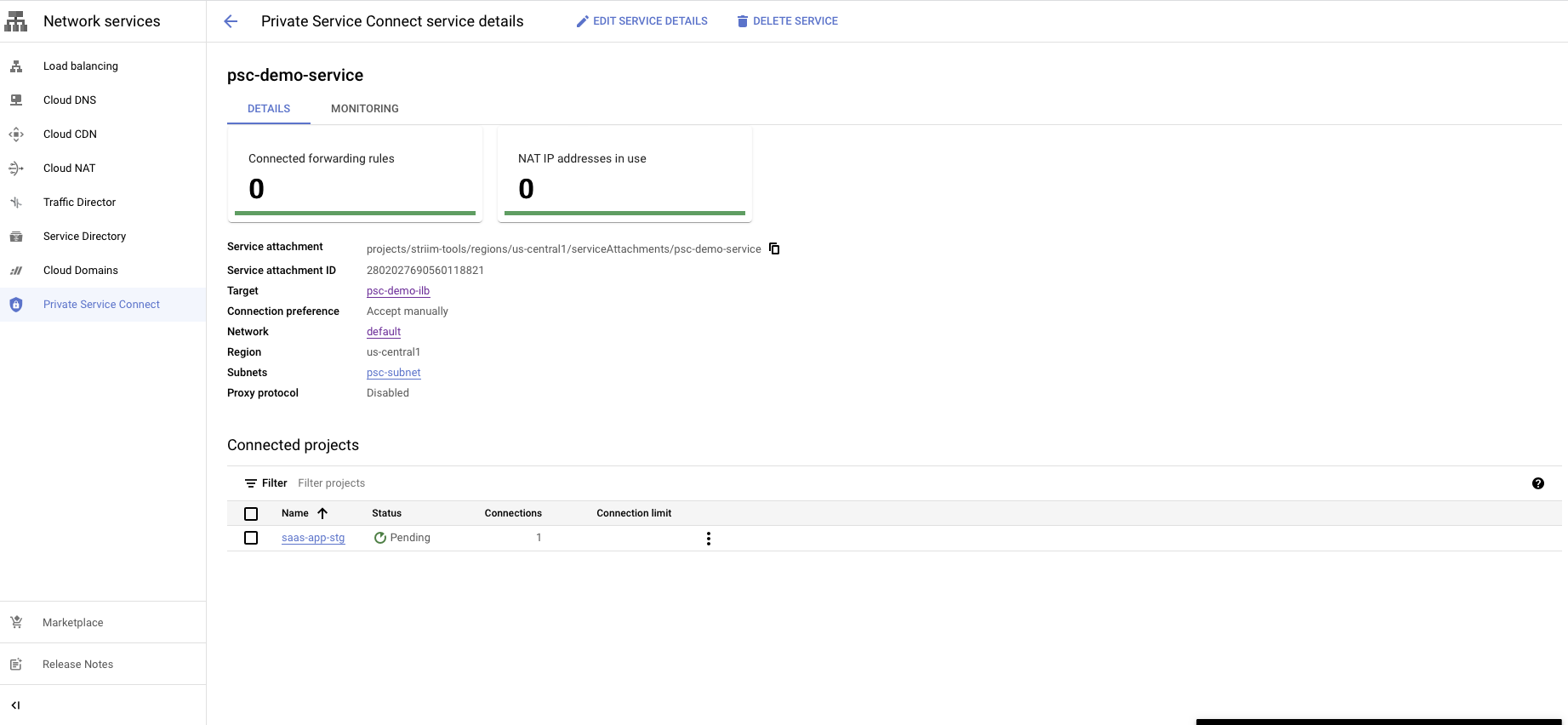

  1. Go to the Private service connect portal, then Published service.

  2. Select the published service.

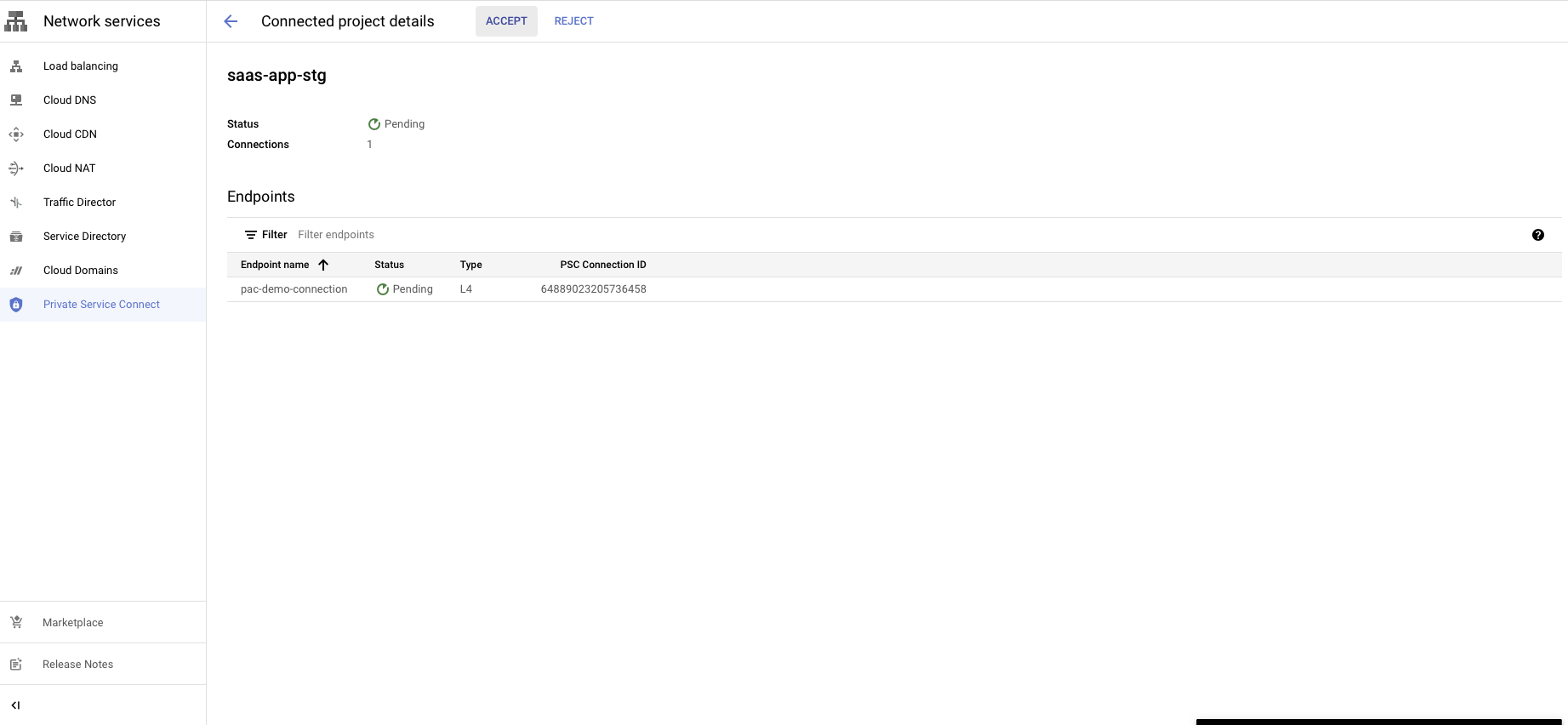

  3. You will see a request in the Pending state.


  4. You have a choice to Accept or Reject the request.


  5. Reject will refuse the new connection request or disconnect the existing connection.
