Working with dashboards

Adding visualizations to a dashboard

The following instructions will create bar and donut charts. Before following these instructions, make sure PosApp is loaded in the Samples workspace, deployed, and running. (See the Hands-on quick tour for an introduction to creating dashboards.)

  1. From the top menu, select Dashboards > View All Dashboards, then click PosAppDash. The dashboard's main page appears.

  2. At the top right, click Edit this page (the pencil icon).

  3. At the left of the page, select the Pages tab, then click + to add a new page.

  4. Select the visualizations tab, then drag the Bar visualization icon into the workspace and drop it. This creates a bar chart.

  5. At the top of the chart, click Edit Query the (< > icon). The query editor opens.

  6. In the Name field, enter Samples.MyQuery. In the SELECT statement field, edit the query to read select count(*) as Count, Category from MerchantActivity group by Category; (you can copy and paste from this document), being sure to end with a semicolon. This will select only the data needed for the chart: the count of WActions for each category and the category names. Click Save Query.

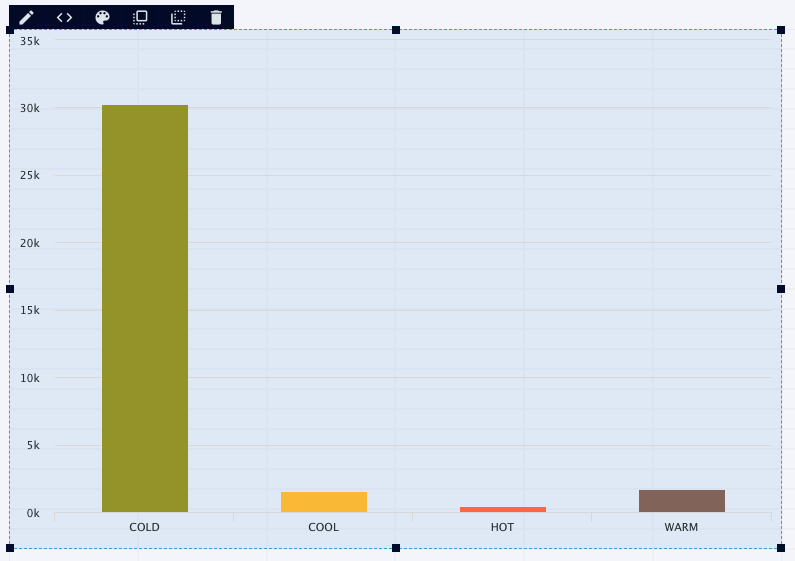

  7. To open the visualization editor, click Configure (the pencil icon) or double-click anywhere in the chart.

    Displays the chart where you can click Configure (the pencil icon) or double-click anywhere in the chart to open the visualization editor.

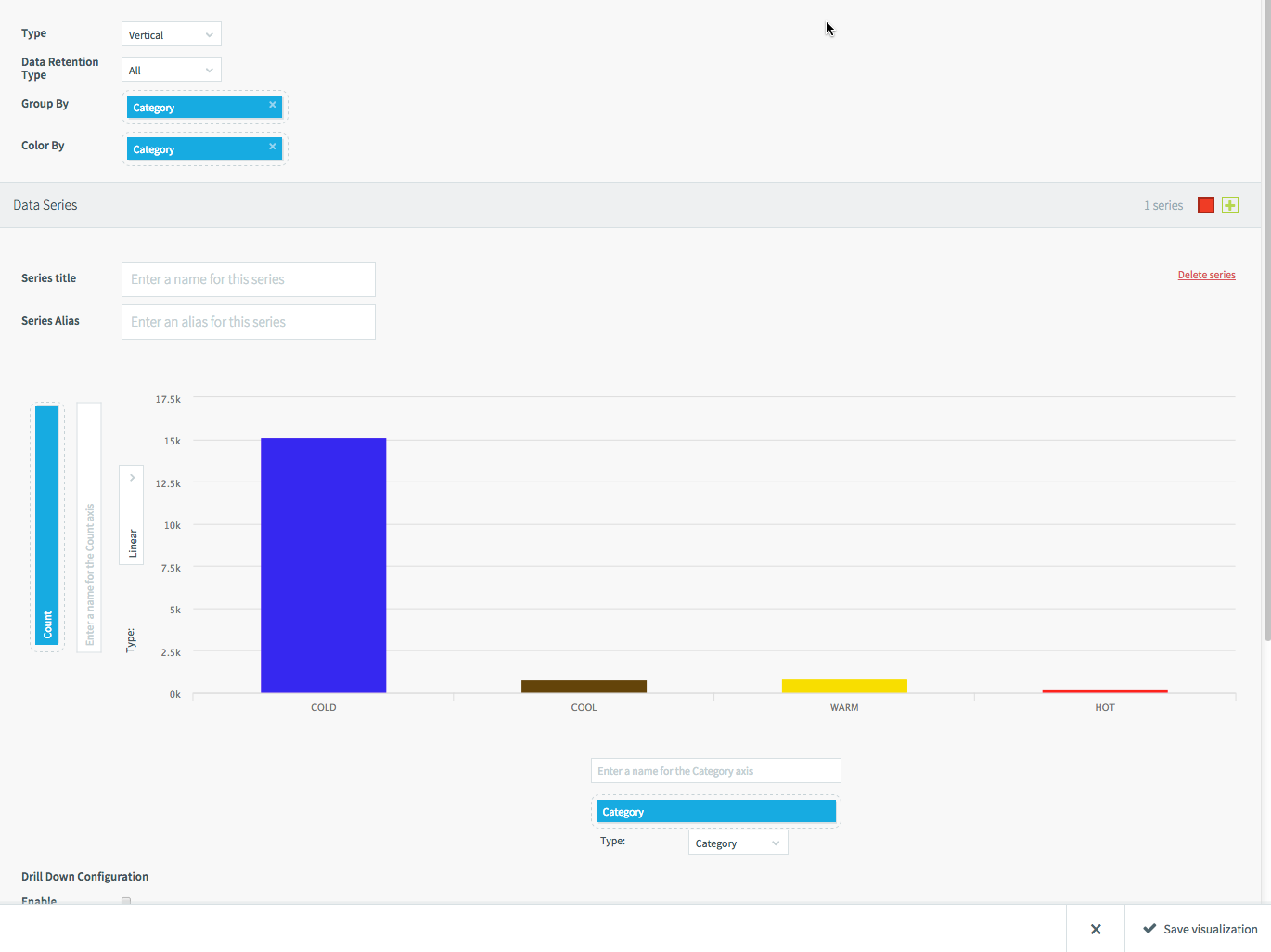

  8. Set Group By and Color By to Category, the vertical axis to Count, the horizontal axis to Category, and the horizontal axis Type to Category, then click Save visualization. (The Category in the Type menu is a chart property, not the name of a field.) The chart appears in the workspace.

    Displays the chart in the workspace. The vertical axis show values for Count, and the horizontal axis shows values for Category.
  9. Drag the Donut visualization icon into the workspace and drop it to create a donut chart.

  10. This chart will use the same query as the bar chart: click the Edit Query button, click in the Name field, select Samples.MyQuery, and click Save Query.

  11. Click the Configure button, set the options as you did for the bar chart, and click Save visualization.

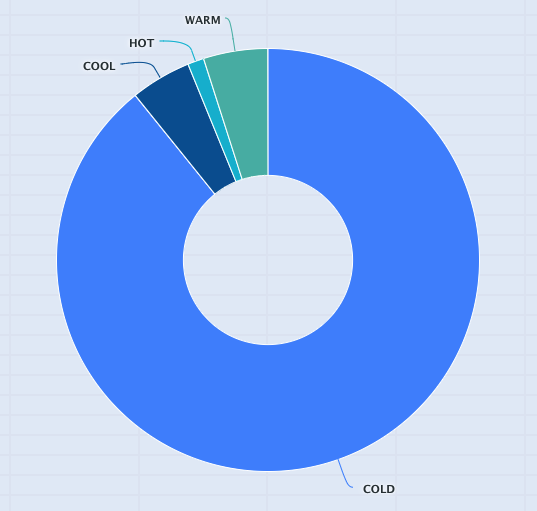

    A donut chart that displays the same data as configured in the bar chart, with categories including Cool, Hot, Warm, and Cold.

Defining dashboard queries

Once you have added a new visualization to a dashboard, the next step is defining its query. Until you do this, the drop-down field menus in the visualization editor will be empty.

A donut chart that displays the same data as configured in the bar chart, with categories including Cool, Hot, Warm, and Cold.

For example, the query for the PosApp donut chart above is:

select count(*) as Count, Status from MerchantActivity group by Status;

This results in four Count values representing the number of merchants with each status. The Count values control the size of the slices and the Status values provide the labels.


When you save a query, the previous version is overwritten, and there is no record of it within Striim. Thus, if you are making substantial changes, it is a good idea to give the query a new name so as to preserve the original, or to copy the original and paste it in a text editor.


The dashboard page- and visualization-level filters (see Dashboards page) are available only when querying a WActionStore that is persisted to Elasticsearch (see CREATE WACTIONSTORE).

By default, dashboard queries are executed only once, when the visualization is loaded. To update the data, refresh the browser to reload the visualization.

To have the a query update continuously, enable polling in the visualization properties. (This property is hidden if the query contains AND PUSH). The query will then be re-run every five seconds, or, if the query takes longer, as soon as it completes.

When querying a WActionStore, the following additional syntax is available:

SELECT ... FROM <WActionStore>
{ <integer> { SECOND | MINUTE | HOUR } |
  JUMPING <integer> { SECOND | MINUTE | HOUR } |
  <integer> { SECOND | MINUTE | HOUR } AND PUSH }
] ...
  • [<time period>] without JUMPING or AND PUSH returns data for the specified period and does not update until you reload the page.

  • [JUMPING <time period] immediately returns data for the specified time period and runs the query again at the same interval. For example, SELECT * FROM MerchantActivity [JUMPING 1 MINUTE] returns data for the past minute and then runs the query again every minute, so you always have one minute's worth of data that is never more than one minute old.

  • [<time period> AND PUSH] returns data for the specified time period and adds more data every time an event is added to the WActionStore. For example, SELECT * FROM MerchantActivity [15 MINUTE AND PUSH] returns data for the past 15 minutes and adds new events indefinitely. Old data is not removed until you reload the page.

  • Do not specify both JUMPING and AND PUSH.

  • It is essential, particularly when using AND PUSH, to include LIMIT and ORDER BY clauses in the query to avoid overloading the dashboard with more data than it can display.

  • Any WHERE, GROUP BY, HAVING, ORDER BY, or LIMIT clause must follow the ]. When PUSH is specified, polling is disabled.

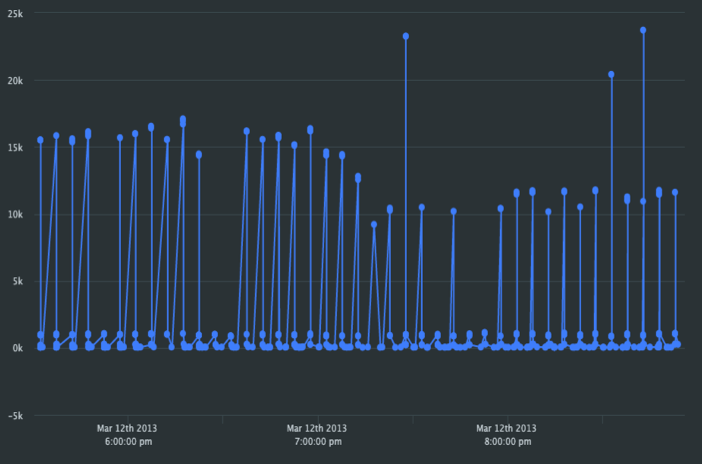

The SAMPLE BY clause (see CREATE CQ (query) may be useful when a visualization contains too many data points. For example, consider this chart using PosApp data with the query SELECT * FROM MerchantActivity ORDER BY time:CREATE CQ (query)

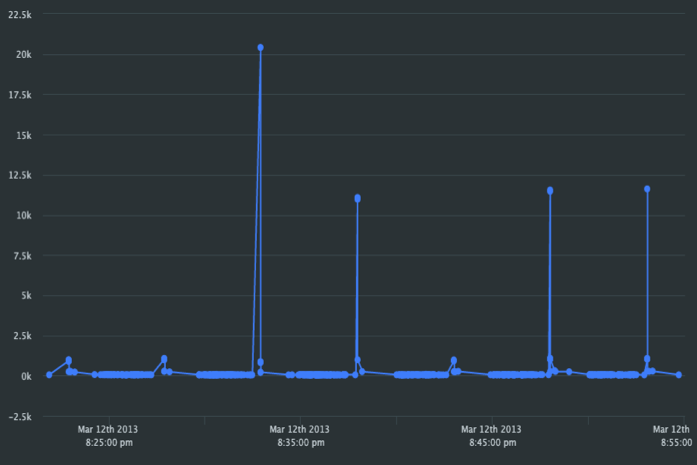

A dashboard showing all the data it can hold from the last half hour.

The dashboard shows as much of the data as it can hold, which is only the last half hour. If you change the query to SELECT * FROM MerchantActivity ORDER BY time SAMPLE BY count, the dashboard can show 3-1/2 hours of data:

A dashboard showing data for a modified query that shows data for the last 3.5 hours.

Making visualizations interactive

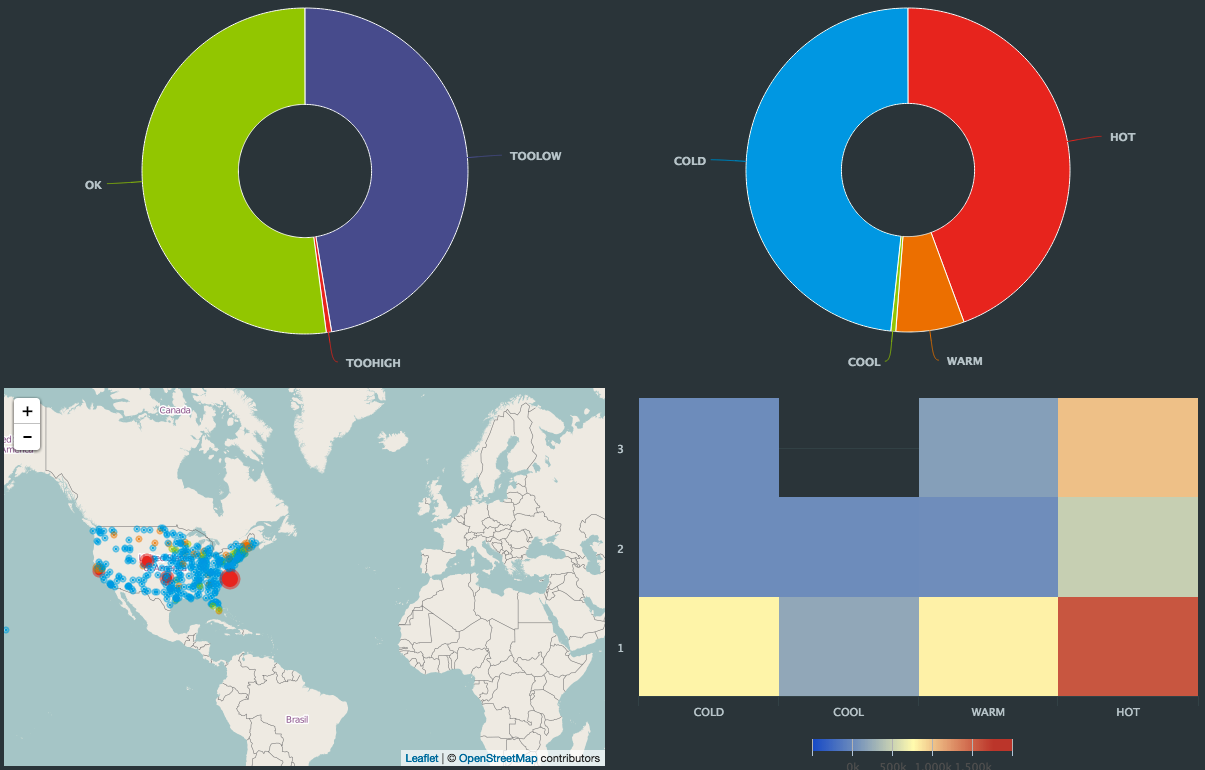

Drill-downs can be used within a single page to filter data interactively. For example, the PosApp visualization below can be filtered by clicking on the pie-chart labels:

Displays how you can click on pie-chart labels to filter data interactively.

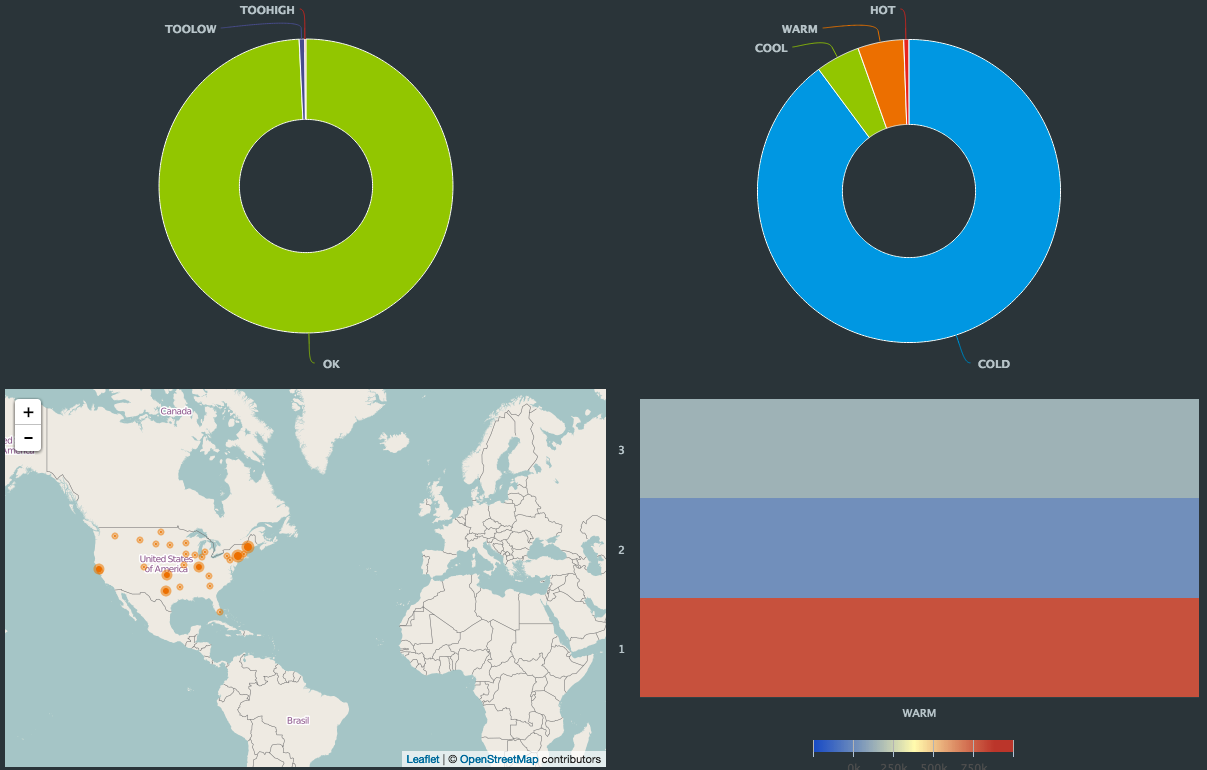

If you click the WARM label of the right-hand pie chart, the map and heat map display only data for merchants currently in that category:

Displays the results of clicking on the WARM label to display only the data in the maps for merchants currently in that category.

This interactivity is defined by setting the drill-down configuration in the pie charts, then using their Id values as in the queries for the two other visualizations. The drill-down configurations are:


drill-down configuration

Status (left) pie chart

Page: Interactive HeatMap Id: status Source field: Status

Category (right) pie chart

Page: Interactive HeatMap Id: category Source field: Category

Since these visualizations are on the Interactive HeatMap page, the drill-down filters the data without switching to another page.

The US map's query is:

select * from Samples.MerchantActivity [15 minute and push] where (:status
IS NULL or (Status = :status)) and (:category IS NULL or (Category = :category))
group by merchantId;

When the page is first loaded, the :status and :category values are null, so the map displays all data. When you click the WARM label, the :category value is set to WARM, and the map updates accordingly.

To clear the filter and return to viewing all data, click Clear All (next to the funnel icon at left).

To explore this more, run PosApp and go to the Interactive HeatMap page.

Embedding a dashboard page in a web page

Use the Embed command to generate HTML code for an iframe you can use to display a Striim dashboard page in a web page. Embedded dashboard pages include both page-level and visualization-level search and search and filter controls.

The embedded dashboard will not require a Striim login. Instead, it uses a special user account with READ permission on the dashboard's namespace and SELECT permissions on the dashboard, its queries, and related the CQs, streams, and WActionStores.

  1. Log in as admin or another user with the Global.admin role.

  2. Go to the dashboard page you want to embed and click Embed.

  3. The exact permissions that will be granted to the special user account are displayed. Click I Agree to create the user account.

  4. Enter the desired width, height, and border width for the iframe, then click Copy.

  5. Paste the iframe in the appropriate location in the web page's HTML.

  6. Preview the web page (the Striim application must be running) and adjust the iframe's properties as necessary.
